FreeMotion e22.9 Elliptical

Regular price Contact Us For Price
Regular price Sale price Contact Us For Price

Deliver an engaging, total-body workout to your members with this ergonomically-enhanced, low-impact cardio solution. Burn more calories and get fit faster with less joint strain and improved balance and mobility.

  • LOW IMPACT, TOTAL-BODY TRAINING

    Give yourself a total-body exercise with the smooth-flowing motions of this redesigned cardio machine. Cross train your way to your fitness goals while treating your body to a low-impact, joint-friendly workout.

    ACCESSIBLE AND ENGAGING SOLUTION

    Participate in the high-intensity studio classes you've been wanting to attend but may not have felt comfortable joining because the equipment accessibility. With a 9.5 in / 24.1 cm step-up-height and ergonomically engineered 20 in / 50.8 cm stride, you have the equipment to thrive.

    HIGH-DEFINITION DISPLAY

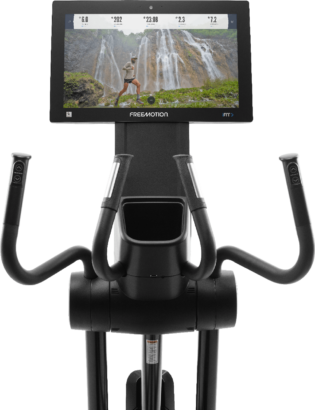

    Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22in / 55cm capacitive touchscreen.

    ON-THE-FLY ADJUSTMENTS

    Override or adapt the programming to meet your needs by quickly adjusting the resistance with controls conveniently placed directly on the handlebars.

    KNOW YOUR ZONE

    Get real-time data during your workout with built-in EKG grips, so you know when you're in the ideal heart-healthy zone. Also compatible with ANT+ and Polar®.

    AUDIO-ENHANCED EXPERIENCE

    Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.

    ADVANCED WORKOUT METRICS

    Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.

    POWER UP

    Charge your devices during your workout with a convenient USB port.

  • CONSOLE FEATURES

    • Display Type 22 in / 55 cm HD Capacitive Touchscreen
    • Resolution 1080p ISP LCD Screen
    • Controls Touchscreen, On-handle Digital Controls
    • Workout Metrics Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
    • Number of Programs Thousands of Global Workouts and Studio Classes with iFIT
    • Preset Programs Limitless iFIT Training Options
    • Google Maps Enabled
    • Console Language(s) English
    • Featured Languages EN, also DE, ES, FR, IT, PT, RU, ZH
    • Maximum Workout Time 99:59 (99 Minutes + 59 Seconds)
    • Maximum Pause Time 60 Seconds
    • Additional Options Quick-start Manual Mode

    ENTERTAINMENT

    • TV Tuner US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
      International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
    • Closed Captioning CC1-4, TEXT 1-4
    • Optional Upgrades N/A

    CONNECTIVITY

    • Recommended Internet Connection Dedicated Ethernet - Cat 6
    • Ethernet Requirements Cat 6 Preferred (Cat 5e or higher required)
    • WiFi Connection 2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
    • WiFi Minimum Requirements 10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
    • Video Connections Coax, HDMI Input
    • Audio Connections 3.5 mm audio out, Bluetooth

    PRODUCT FEATURES

    • Drive System Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive
    • Crank & Axle 2 PC, 20 in / 50.8 cm Stroke
    • Drive Belt Quiet Belt Drive System
    • Pedals Non-Skid Traction Control Pedals
    • Gear Ratio 8.85:1
    • Resistance System 400 Watt EMS Brake Resistance System
    • Heart Rate Monitoring Dual EKG Pulse Sensors, ANT+ and Polar Compatible
    • Workout Fan N/A
    • Accessory Charging USB Charging Port
    • Accessory Holder(s) Water Bottle Holder, Secure Phone Holder
    • Grips Soft touch upper body grips
    • Positioning Large Adjustable Leveling Feet
    • Transport Wheels 3.3 in / 8.38 cm plastic wheels
    • Color Options N/A (Flat Black is standard color)
    • Unit Options N/A
    • Power Options 110-120 VAC, 2 Amp
      220-240 VAC, 1 Amp

    PRODUCT SPECIFICATIONS

    • Maximum User Weight 400 lb / 181 kg
    • Step-up Height 9.5 in / 24.1 cm
    • Stride Length 20 in / 50.8 cm stride length
    • Resistance Levels 1-24 Levels of Resistance

    DIMENSIONS & WEIGHT

    • Product Dimensions L x W x H 87.2 x 28.5 x 71 in / 221.5 x 72.3 x 180.3 cm
    • Product Weight 279.4 lbs / 126.7 kg
    • Shipping Dimensions 91.3 x 26.2 x 33.1 in / 232 x 66.5 x 84 cm
    • Shipping Weight 309.4 lbs / 140.3 kg

    POWER REQUIREMENTS

    • U.S. & Canada Input 110~240V, Output 15V 3A
    • International Input 110~240V, Output 15V 3A

    CERTIFICATIONS

    • cTUVus, FCC/IC, BQB

  • HIGH-USAGE WARRANTY (US & CANADA)

    • Frame: 7 Years
    • Parts: 2 Years
    • Console: 2 Years
    • Labor: 1 Year
    • Cosmetic & Wear Items: 6 Months

    LOW-USAGE WARRANTY (US & CANADA)

    • Frame: 7 Years
    • Parts: 3 Years
    • Console: 3 Years
    • Labor: 3 Years
    • Cosmetic & Wear Items: 6 Months
